Thermal Oil Plant Pile Cap, Meadow Lake

Concrete foundation design, drafting, and field reviews of:

18 m x 22 m (59 ft x 73 ft) pile cap with 147 driven piles

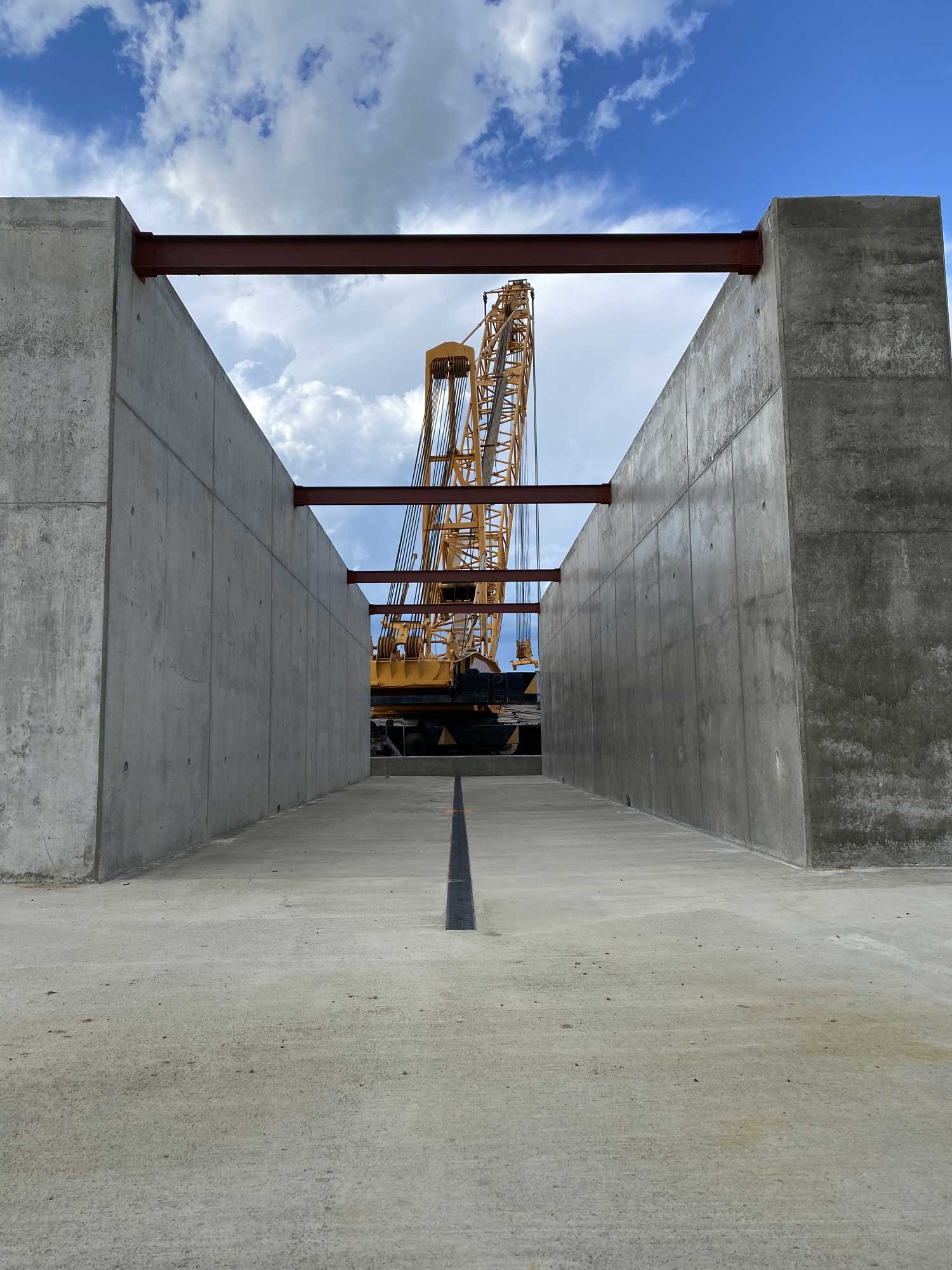

Two 1 m thick x 4 m high x 16 m long (3.25 ft x 12.75 ft x 53 ft) combustion chamber walls supporting:

• Combustion Chamber (full): 3,100 kN (697,000 lbs)
• Fuel Pusher (full): 170 kN (38,000 lbs)
