ORC Building, ACC Structure and Turbine Foundations

Concrete foundation design, drafting, and field reviews of:

Pile cap with 16 driven pipe piles supporting:

• Vibration sensitive turbine: 250 kN (56,000 lbs)

Individual and combined pile caps with 221 total helical screw piles supporting:

• Pre-Eng. Building
• Pressure Vessels
• Equipment Frames
• Air-Cooled Condenser (ACC) Structure

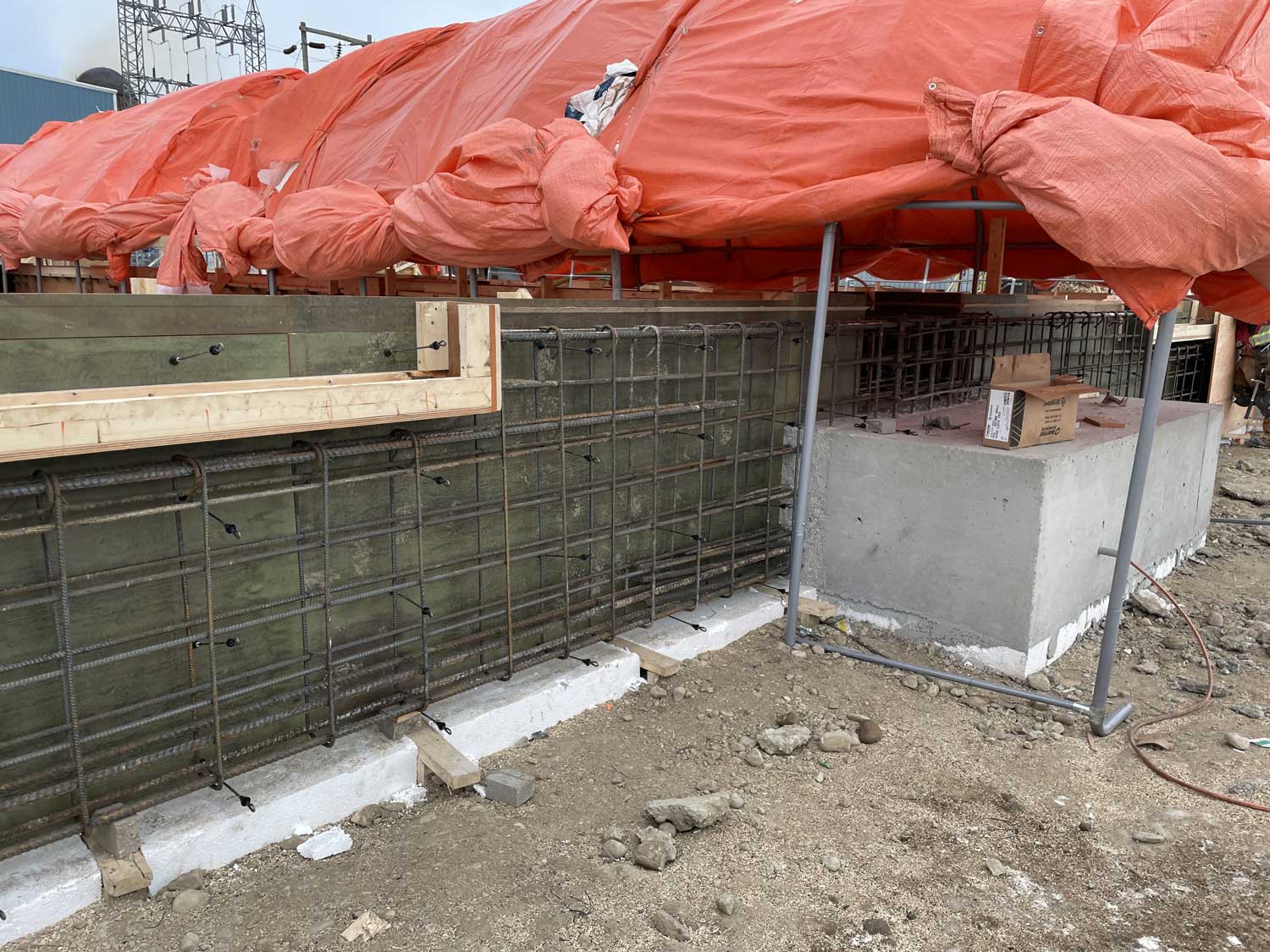

Slab-on-grade, grade beams, and pedestals

Steel design, drafting, and field reviews of:

• Interior pipe support frame and access platform
