Cold Blow Cooler Upgrade

Cold Blow Cooler Upgrade

GSEI Scope

Steel design, drafting, and field reviews of:

  • Steel frame supporting a new cold blow cooler (heat exchanger) weighing 157 kN (35,300 lbs)
  • Access platforms
  • Spreader bar and cart

Rigging procedure and installation sequencing of the 9.1 m (30 ft) long cold blow cooler into the tight existing space.

Hanging support and access platform
Cold blow cooler hanging support
Support framing and bracing

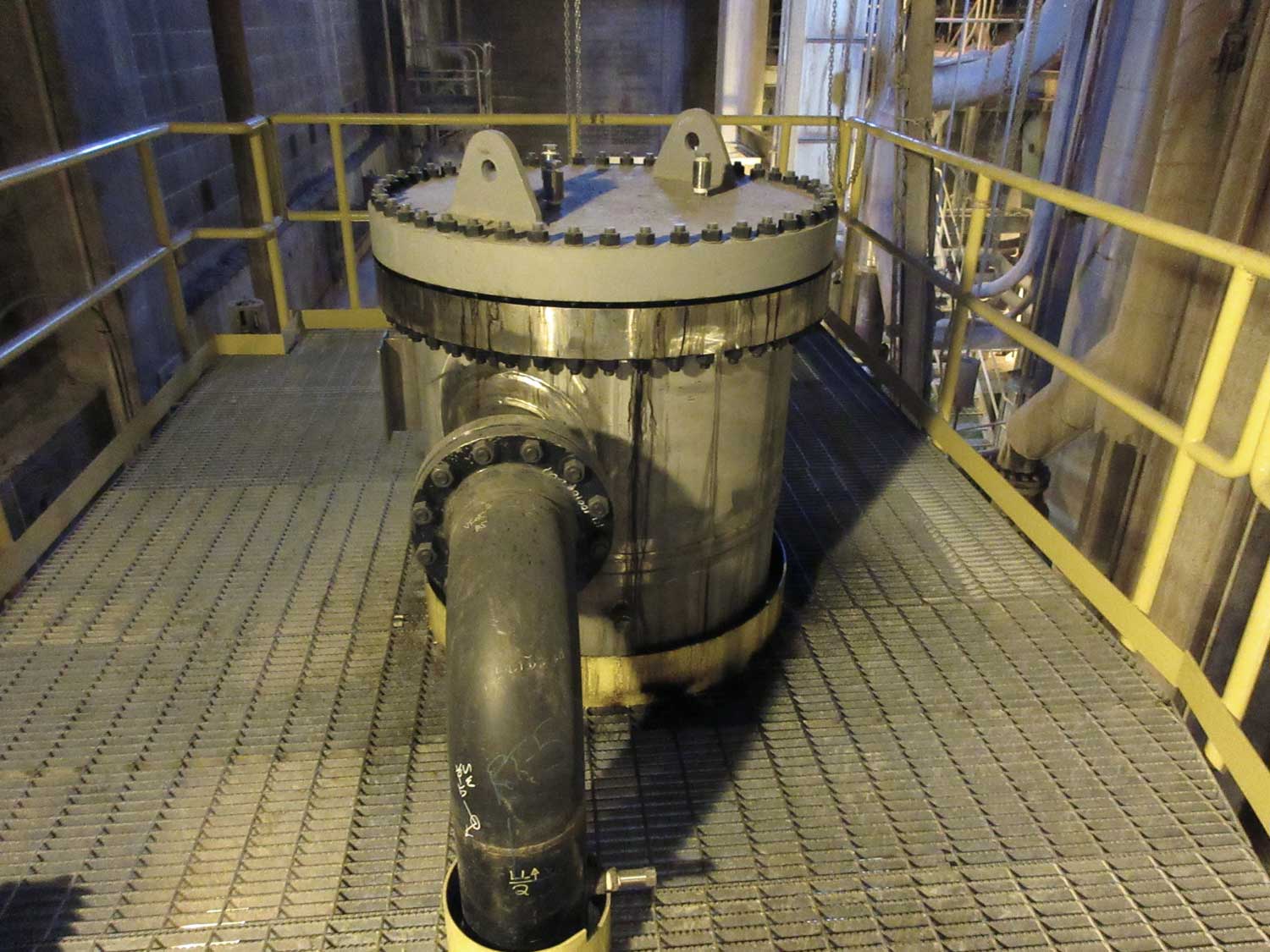

Top cover access platform
